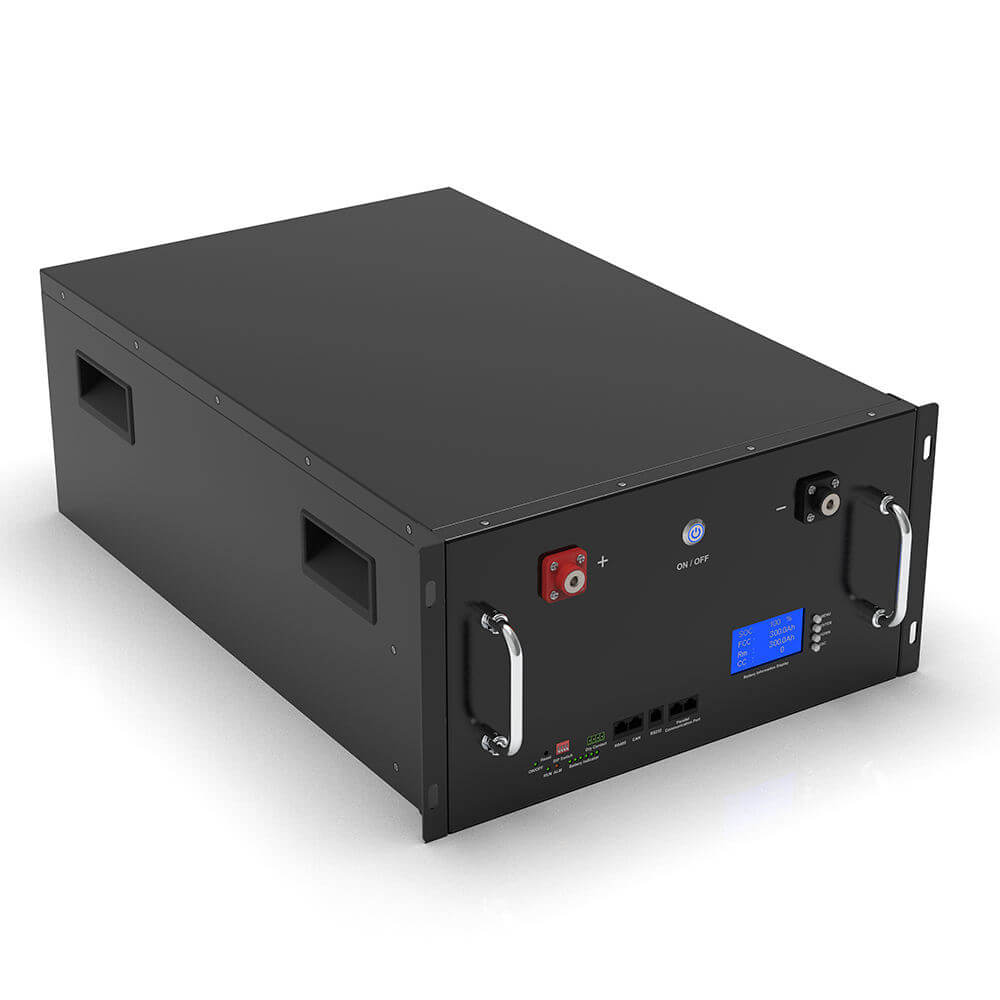

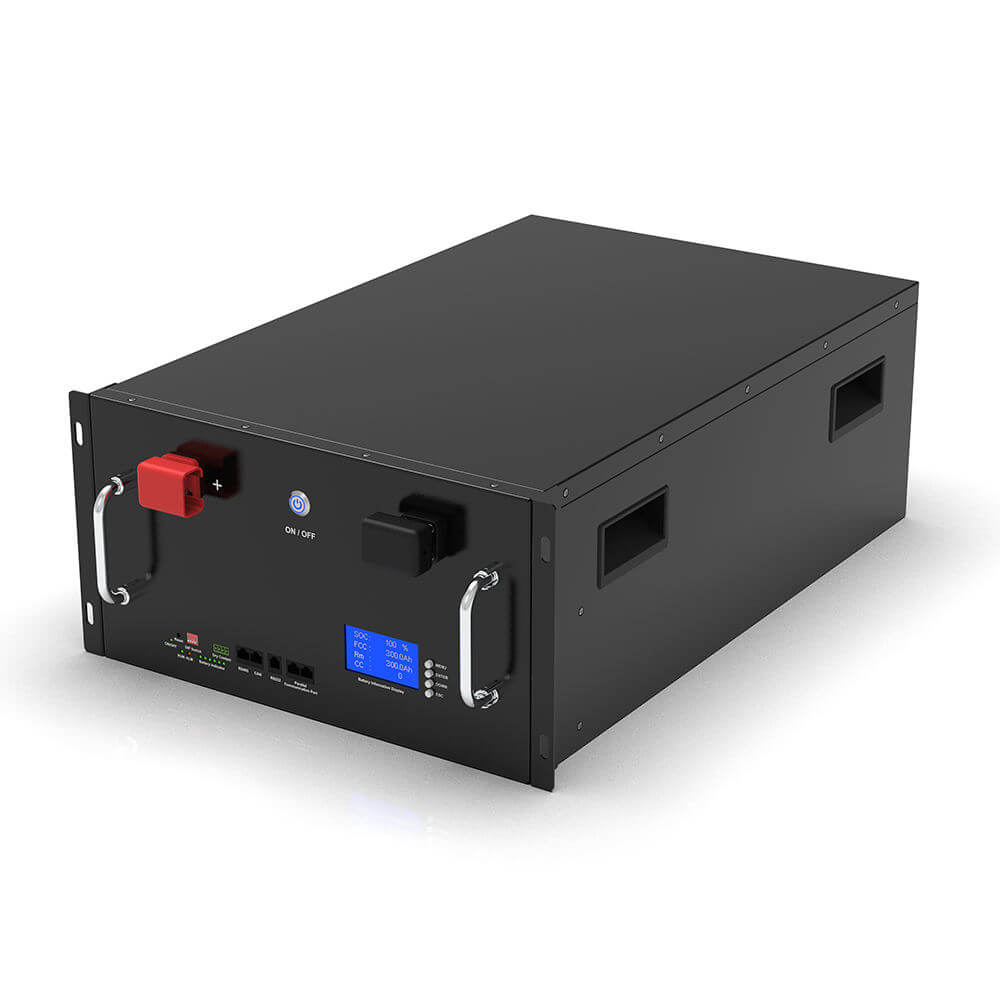

Solar Rack Mounted LiFePO4 Batteries 48V 280AH

2026-03-02 01:51

Solar Rack Mounted LiFePO4 Batteries 48V 280AH
آئٹم	تفصیلات		نوٹ
بیٹری پیک	برائے نام وولٹیج:	51.2V	Support Customized 6.4V-96V
	Nominal Capacity:	280ھ	Any capacity can be customized
	End of Discharge Voltage:	58.4V
	End of charge Voltage:	38.4V
	Max.Cont. Charge Current:	≤100A	Free Customization Service
	End of Charge Current:	100 ایم اے	Free Customization Service
	Nominal Discharge Current:	100A(Safe)	Free Customization Service
	Max. Pulse Discharge Current:	200A(3S)	Free Customization Service
	Internal Resistance:	Ω50mΩ
	Operating Charge Temperature:	0 ～ 45 ℃
	Operating Discharge Temperature:	-20 ～ 60 ℃
	Storage Temp.(60-80% SOC Storage):	-10～45℃
	Charge Method:	سی سی / سی وی
	BMS:	Built in BMS	Support Customized Extra Function
	طول و عرض:	640*500*240mm（L*W*H）
	وزن:	≈95KG
	سائیکل زندگی:	6000+	(Cycle @RT, 1C rate)

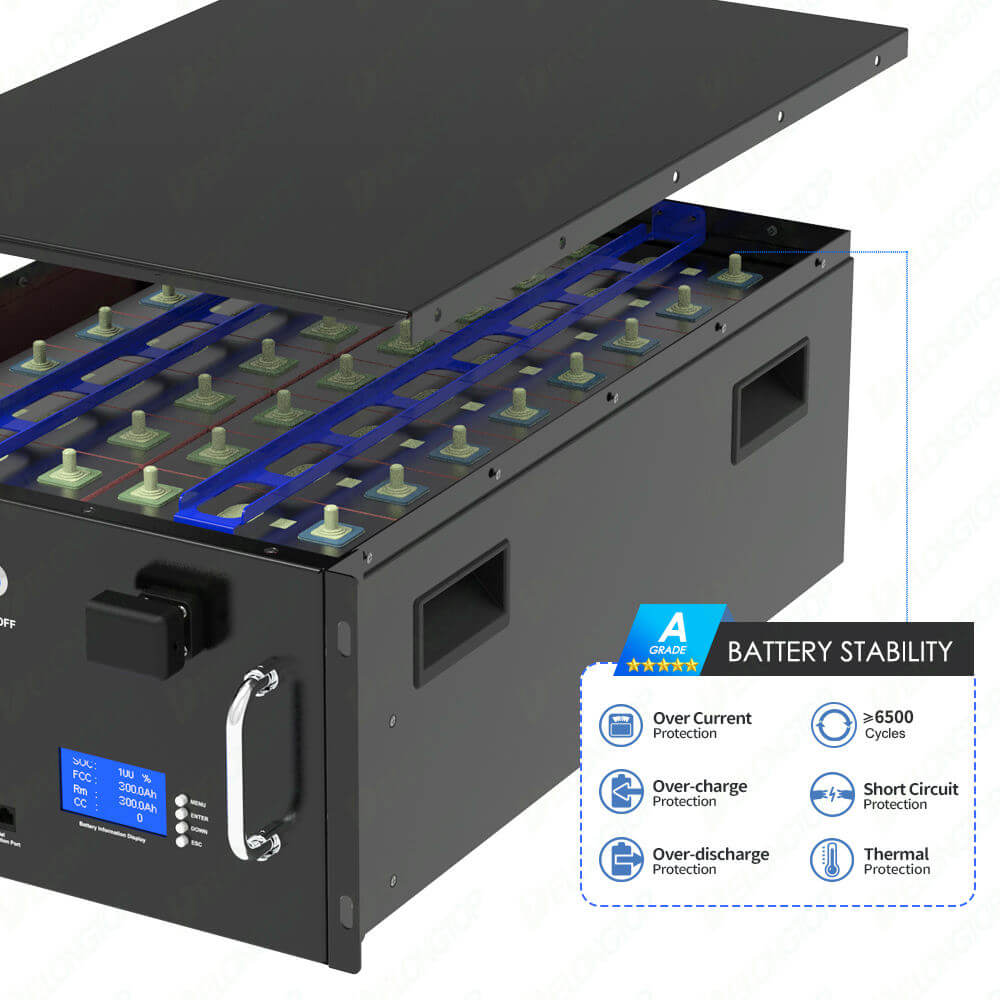

Battery Cell Used	Prismatic LiFePO4 Cell/ Pouch LiFePO4 Cell	3.2V 280AH	16S1P
بی ایم ایس	Charge Protection, Over charge Protection, Over Discharge Protection, Short Circuit Protection		Support Customized Extra Function
ایل ای ڈی اشارے	/	/
بیٹری کیس	دھاتی کیس	/
	IP Grade:	آئی پی 56۔

Product Characteristics

* High performance traction - Especially for mobile or stationary use with the highest requirements
* LiFePO4 280Ah lithium battery replaces a 400Ah lead battery - Thanks to maximum usable capacity
* Safest lithium (LiFePO4) technology - Lithium-iron-phosphate, no gas, no danger of explosion or fire. No need maintenance
* Long service life - Maximum service life with more than 3500 cycles up to 8000 cycles, even with regular deep discharge
* High discharge current - High discharge performance without voltage drop for large consumers such as coffee machines and air
conditioning systems
* Light weight - Up to 70% weight savings compared to lead-acid batteries
* Low automatic discharge - Stored/ unused, only about 3% per month

Focus on Solar Energy Storage System

Our wall-mounted LiFePO4 battery was specially developed for home solar energy storage system. The battery used the lightest cell and can be mounted on the wall with a battery holder.

48V 150AH LiFePO4 Battery supply the enough power to the home applications , and our battery meet the standard of most inverter and MPPT controller. If you are not sure, you can tell us the information of the inverter and controller you are using and we will custom the right battery to you.



BMS（Battery Management System）

It is an electronic system allowing the control and the charge of the different elements of a storage battery. The BMS built into each battery ensures that the battery is protected from improper handling. It switches the battery in case of under voltage or overload, and turns on automatically as soon as the problem is fixed.* Protection of the cell against under voltage by cutting the
load over time.
* Protection of the cell against over voltages by reducing the charging current or by stopping the charging process.
* System shutdown in case of overheating.
* Battery charging is stopped at low temperature.



SUPPORT ALL IN ONE SMART COMMUNICATION FUNCTION

Our BMS is a complete set of communication functions, supporting RS485, RS232 and CAN-BUS communication protocols. We can also customize the communication content according to the confirmation which customers provide. Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.



ہماری کمپنی

ہم کون سا بیٹری سیل استعمال کرتے ہیں۔

As a 12 year-old store engaged in the battery business, we are responsible for our customers and our brand.

Using only A grade cells, the cycle life can up to 6500-8000 times: 10AH/ 25AH/ 30AH/ 50AH/ 100AH/ 200AH...
1> ہماری بیٹریاں اصل سیل مینوفیکچرر کی طرف سے سپلائی کا بنیادی ذریعہ ہیں، بیٹری سیلز کو جوڑا بنایا جاتا ہے اور آؤٹ گوئنگ سے پہلے تقسیم کیا جاتا ہے، اور براہ راست جمع کیا جا سکتا ہے۔
2> متعدد سرٹیفیکیشن اور ٹیسٹنگ، کوالٹی اشورینس کے ذریعے۔
3> دو قسم کے پاؤچ سیل اور پرزمیٹک سیل ہوتے ہیں۔ پاؤچ سیلز: ہلکے، سستے، اور خاص سائز میں اپنی مرضی کے مطابق کرنے میں آسان۔ prismatic خلیات: آسانی سے درست نہیں، مستحکم کارکردگی، بالغ مارکیٹ، اس وقت زیادہ مقبول.

عمومی سوالات

Q1: What are there included for a battery or pack , may I buy charger from you?

A1: Battery case, BMS, battery pack, can buy customized connector, charger

Q2: How long frequency does recharge the battery?
A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.

Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payment, bulk in 10-25 days depends on the quantity
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales person to check the best option for you.

Q4. What is your warranty?
A4: We offer 10 years warranty for all our battery pack for different situation. We ensure at least 3500 cycle life for the
LiFePO4 battery pack, which means you can use it for at least 10 years for normal 1 time charge and discharge everyday.

Q5: Can I customize the size of battery?
A5: Of course yes if your quantity MOQ workable.

Q6. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A6: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2> خارج ہونے والی بیٹری اور غیر منقول بیٹری متوازی میں مت رکھیں۔ اس سے پورے بیٹری پیک کی گنجائش کم ہوسکتی ہے۔
3> اگر آپ ان کو سلسلہ میں رکھنا چاہتے ہیں تو ہمیں پورے پیک کی ہدف کی گنجائش کا مشورہ دیں۔ ہم ہر بیٹری کے لئے موزوں بی ایم ایس کا انتخاب کریں گے۔
4> اگر آپ متوازی اور سیریز بیٹریاں میں پیشہ ور نہیں ہیں تو ، براہ کرم بیٹری کو خود نہ سنبھالیں۔ یہ خطرے کا سبب بن سکتا ہے اور بیٹری کی سائیکل لائف کو نقصان پہنچا سکتا ہے۔

Q7. Can we use it for car engine?
A7: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
