تفصیلات
ماڈل نمبر | AIN HP5.1L-A1 | AIN HP7.6L-A1 | AIN HP10.2L-A1 |
Nominal Parameters | |||
وولٹیج | 48/51.2V | 48/51.2V | 48/51.2V |
اہلیت | 100Ah | 150Ah | 200Ah |
توانائی | 5.12kwh | 7.68kwh | 10.24kwh |

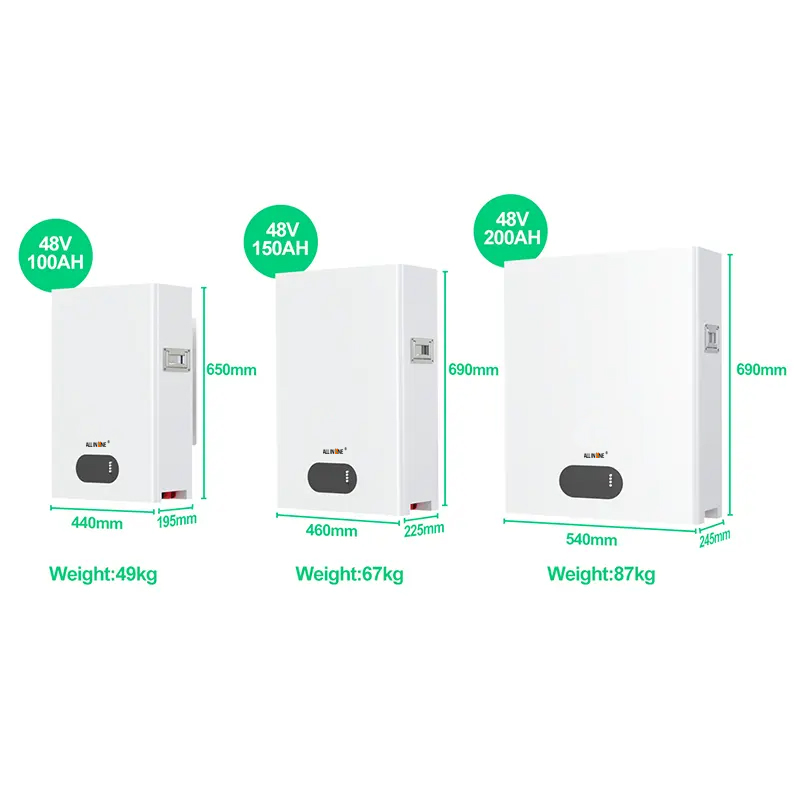

Dimensions (L xWxH) | 440x695x195mm | 460x690x225mm | 540x690x245mm |
وزن | 49kg | 67kg | 87kg |
بنیادی پیرامیٹرز | |||
Life Times (25C) | 20 Years | 20 Years | 20 Years |
Life Cycles (80% DOD, 25°C) | 5000 Cycles | 5000 Cycles | 5000 Cycles |
Storage Time /Temperature | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C |
آپریشن درجہ حرارت | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity |
ذخیرہ اندوزی کا درجہ حرارت | 0°C سے 45°C @60+/-25% رشتہ دار نمی | 0°C سے 45°C @60+/-25% رشتہ دار نمی | 0°C سے 45°C @60+/-25% رشتہ دار نمی |
لتیم بیٹری معیاری | 1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3 | ||
Enclosure Protection Rating | IP31Rating | ||
Electrical Parameter | |||
Operation Voltage | 40-57.6Vdc | 40-57.6Vdc | 40-57.6Vdc |
Max charging Voltage | 58Vdc | 58Vdc | 58Vdc |
Max charging and Dis charging Current | 100A | 150A | 200A |
زیادہ سے زیادہ طاقت | 5120W | 7680W | 10240W |
ہماری فیکٹری
ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.
عمومی سوالات
س: کیا آپ ٹریڈنگ کمپنی یا صنعت کار ہیں؟
A: We are ALL IN ONE original factory.
س: کیا میں نمونے لینے کے ل have ٹیسٹ کرسکتا ہوں؟ اور نمونہ آرڈر کے لئے لیڈ ٹائم کیا ہے؟
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
سوال: کیا آپ فروخت کے بعد سروس فراہم کرتے ہیں؟
A: ہاں ، وارنٹی 12 مہینے کی ہے ، اگر اس عرصے میں ہماری طرف سے کوالٹی پریشانی ہے تو ، ہم اسے متبادل کے طور پر نیا بھیج سکتے ہیں۔
س: کیا آپ OEM / ODM قبول کرتے ہیں؟
A: ہاں ، یہ دستیاب ہے۔
Q: کیا آپ بیٹری کی اصل صلاحیت رکھتے ہیں؟
A: گریڈ A ، ہمارے 100 new نئی اور اصل صلاحیت کے حامل ہمارے تمام بیٹری سیل ہیں۔
س: آپ کے پاس کس طرح کا سرٹیفکیٹ ہے؟
A: اگر آپ کے آرڈر کی مقدار بڑی ہے تو ہم عیسوی ، ROHS ، FCC ، IEC62133 ، MSDS ، UN38.3 فراہم کرسکتے ہیں۔
Q: کیا آپ کے پاس MOQ ہے؟
A: کوئی محدود نہیں۔ چھوٹے آرڈر کا بھی خیرمقدم کرتے ہیں۔ زیادہ مقدار میں بہتر قیمت ہوتی ہے ، ہم آپ کے لئے بہترین قیمت چیک کریں گے۔
س: آپ کی ادائیگی کی مدت کیا ہے؟
A: ہم ٹی / ٹی ، پے پال ، علی بابا ادائیگی کا طریقہ اپناتے ہیں۔
Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
