تفصیلات
ماڈل | AIN51105W | AIN51105S | AIN5165S | AIN51150S | AIN76105S |
برائے نام وولٹیج | 51.2V | 51.2V | 51.2V | 51.2V | 76.8V |
برائے نام کی اہلیت | 105Ah | 105Ah | 65Ah | 150Ah | 105Ah |
Rated Energy | 5370Wh | 5370Wh | 3320Wh | 7680Wh | 5370Wh |
Maximum Charge Voltage | 58.4V | 58.4V | 58.4V | 58.4V | 87.6V |
زیادہ سے زیادہ چارج موجودہ | 100A | 100A | 60 اے | 150A | 100A |
زیادہ سے زیادہ مسلسل خارج ہونے والا موجودہ | 150A | 150A | 130A | 200A | 200A |
Maximum Peak Discharge Current (30 seconds) | 300A | 300A | 250A | 300A | 300A |
ڈسچارج کٹ آف وولٹیج | 43.2V | 43.2V | 43.2V | 43.2V | 43.2V |
Driving Mileage | 65-80km | 65-80km | 40-60km | 90-120km | 100-130km |
درجہ حرارت چارج کریں | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ | 0 ~ + 55 ℃ |
خارج ہونے والے درجہ حرارت | -20 ~+60۔ | -20 ~+60۔ | -20 ~+60۔ | -20 ~+60۔ | -20 ~+60۔ |
Cycle Life (25℃, 0.5C, 100% DOD) | > 6000۔ | > 6000۔ | > 6000۔ | > 6000۔ | > 6000۔ |
Terminals | M8 Nut | M8 Nut | M8 Nut | M8 Nut | M8 Nut |
تحفظ کی سطح | IP67 | IP65 | IP65 | IP65 | IP65 |
طول و عرض (ملی میٹر) | 547*334*245 | 457*298*253 | 465*243*228 | 675*325*260 | 674*338*275 |
وزن | 48.3kg | 49 کلو | 32 کلو | 71kg | 72.8kg |

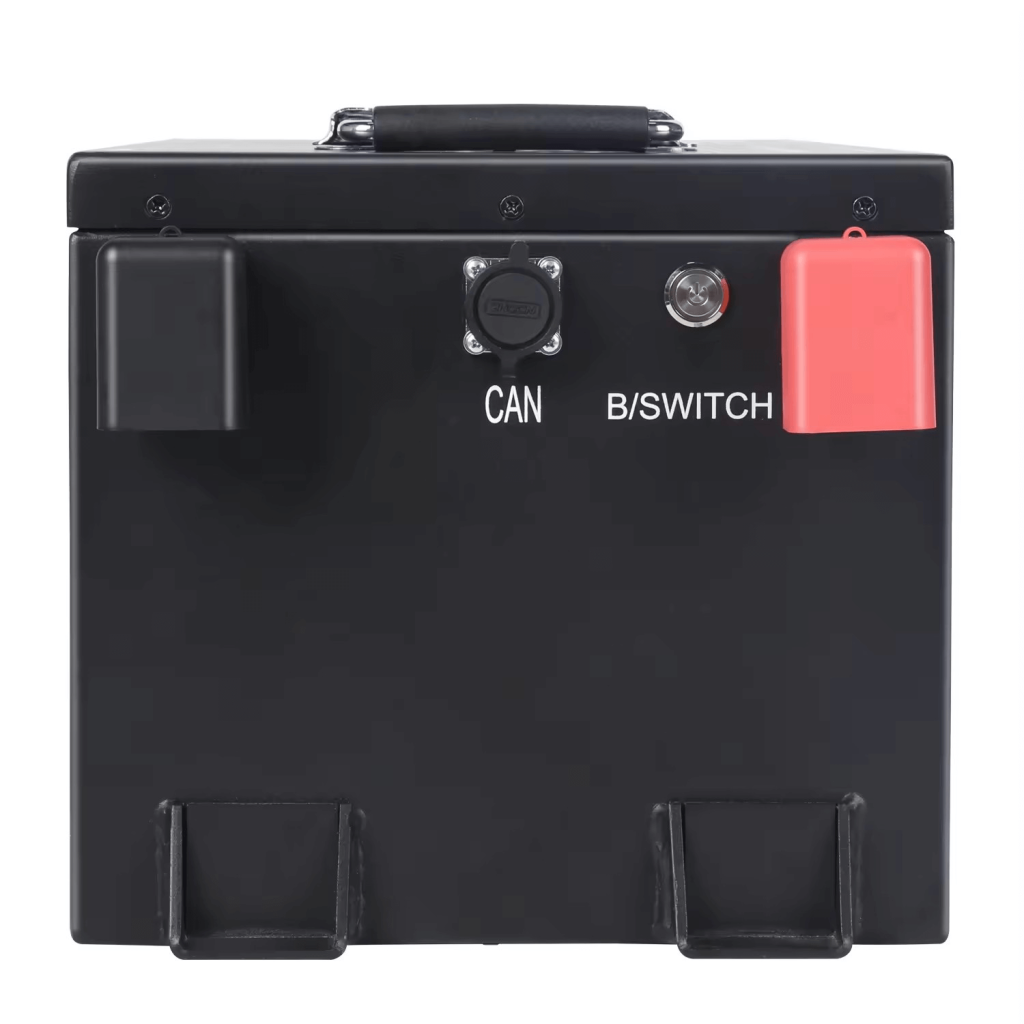

Communication Protocol | CAN/RS485 | RS485 | RS485 | CAN/RS485 | CAN/RS485 |
اہم خصوصیات
1, PET is able to bear 850kg, avoid bulging
2, CCS vehicle-grade craft,integrated wires

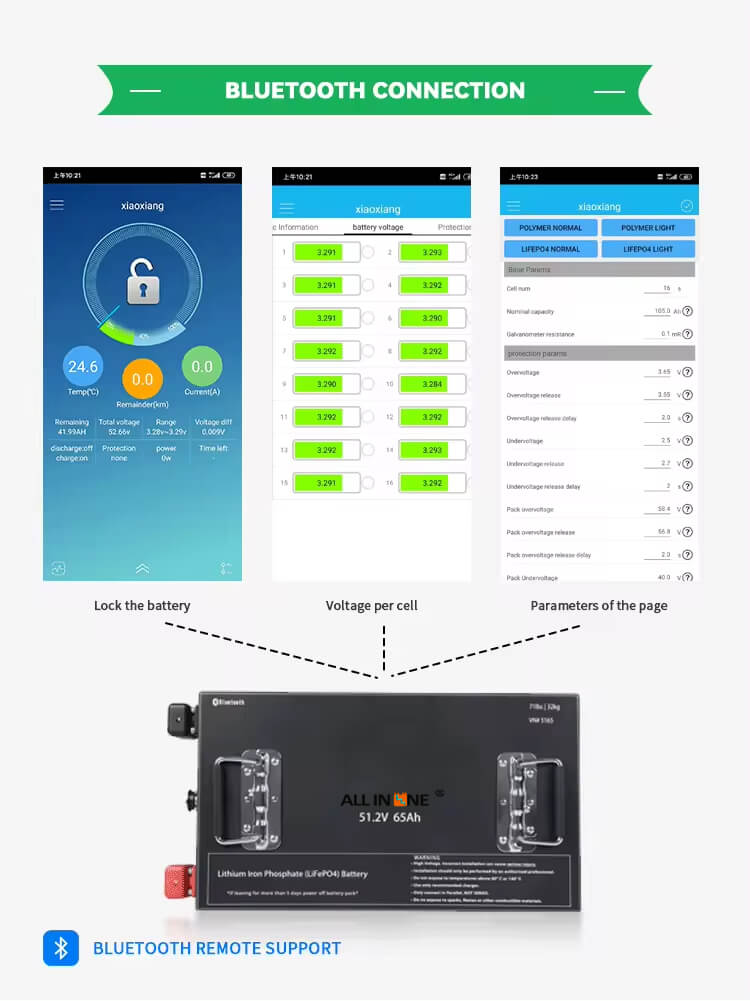

3, Support RS485/CAN/Bluetooth etc
4, 3-4mm metal plates at both side
5, Reserve 1mm width for potential bulging
6, Distributed sampling system to solve sampling impedance problem.
ہم وعدہ کرتے ہیں
1. تمام مصنوعات ہوں گی۔ 100٪ تجربہ کیا شپمنٹ سے پہلے اس بات کا یقین کرنے کے لیے کہ پروڈکٹ کو معیار کے مسائل نہیں ہیں۔
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.
درخواست
> Uninterruptible power system > Grid load shifters > Electric Golf Car > Electric vehicles
> Electric motorcycles> Electric forklifts > Electric boats, etc.> Wind-Solar energy system
> Solar street lights > Off-grid energy storage > Household energy storage
> Telecom backup system > Mobile base stations> Emergency backup energy sources
ہماری فیکٹری
پیکنگ اور شپنگ
عمومی سوالات
Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.
Q2: کیا آپ فروخت کے بعد کی خدمت فراہم کرتے ہیں؟
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.
Q3 آپ کی کمپنی کا کیا فائدہ ہے؟
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service
Q4: کیا آپ OEM / ODM قبول کرتے ہیں؟
A4: Yes, it is available.
Q5: What is your lead time for mass production?
A5: عام بولتے ہوئے ، نمونے کے بارے میں ادائیگی اور تصدیق کے نیچے آنے کے بعد مختلف اشیا پر منحصر ہے ، تقریبا 25-30 دن۔
Q6:Are your battery real capacity?
A6: ہمارے بیٹری کے تمام خلیے جو A گریڈ A ، 100 new نئی اور اصل صلاحیت کے ساتھ ہیں۔
Q7: کیا آپ فیکٹری یا تجارتی کمپنی ہیں؟
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
س 8: آپ کے پاس کس طرح کا سرٹیفکیٹ ہے؟
A8: اگر آپ کے آرڈر کی مقدار بڑی ہے تو ہم عیسوی ، ROHS ، FCC ، IEC62133 ، MSDS ، UN38.3 فراہم کرسکتے ہیں۔
